Make sure this part fits

GM 19149619
Center Link

1999-2007 GM

Customer Questions & Expert Answers (16)
GM 19149619 Center Link
GM 19149619 Center Link
GM 19149619 Center Link
GM 19149619 Center Link
GM 19149619 Center Link
GM 19149619 Center Link
  • Part Description
    Rod Kit, Steering Connecting; Drag Link
  • Replaces
    89040375, 12471375
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

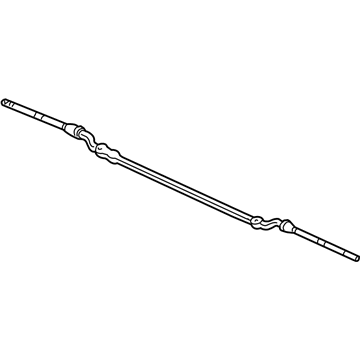

  • 19149619 Center Link is Ref No. 1 in the diagram below

    2007 GMC Sierra 1500 Center Link Diagram for 19149619
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 19149619

  • Vehicle Fitment

    Year Make Model Trim Engine
    2002-2006 Cadillac EscaladeBase8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2003-2006 Cadillac Escalade ESVBase8 Cyl 6.0 L GAS
    2002-2006 Cadillac Escalade EXTBase8 Cyl 6.0 L GAS
    2002-2006 Chevrolet Avalanche 1500Base, LS, LT, North Face, On Road Edition, WBH, Z66, Z718 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
    2002 Chevrolet Avalanche 2500Base8 Cyl 8.1 L GAS
    2003-2004 Chevrolet Express 2500Base, LS6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
    2003-2004 Chevrolet Express 3500Base, LS8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
    1999-2007 Chevrolet Silverado 1500Base, Hybrid, LS, LT, LTZ, SS, WT, Z71 Off-Road6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2007 Chevrolet Silverado 1500 ClassicHybrid, LS, LT, SS, WT6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2005-2006, 2001-2003 Chevrolet Silverado 1500 HDBase, LS, LT8 Cyl 6.0 L GAS
    View More
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 19149619 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 19149619 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the first step to replace the relay rod for the 2002 Cadillac Escalade? Posted by Customer
    A:
    First, raise the vehicle and remove the engine protection shield if equipped.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    How do you remove the relay rod for the 2006 Cadillac Escalade EXT? Posted by Customer
    A:
    Utilize the J 24319-B to remove the relay rod from both the idler arm ball stud and the pitman arm ball stud, then take out the relay rod from the vehicle.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What is the installation process for the relay rod for the 2002 Chevrolet Avalanche 2500? Posted by Customer
    A:
    Attach the relay rod to the vehicle, ensuring it connects to the pitman arm ball stud and idler arm ball stud with the seal in place.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What type of nuts should be installed for the pitman arm and idler arm for the 2006 Chevrolet Avalanche 1500? Posted by Customer
    A:
    Install new prevailing torque nuts for the pitman arm and idler arm, tightening them to 62 Nm (46 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What is the next step after detaching the inner tie rods for the 2003 Chevrolet Express 3500? Posted by Customer
    A:
    Remove the idler arm to relay rod retaining nut and discard it, followed by the pitman arm retaining nut, which should also be discarded.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What should be inspected after removing the tie rod ends and nuts for the 2002 Chevrolet Suburban 1500? Posted by Customer
    A:
    Inspect the threads on the tie rod ends and ball studs for damage, as well as the ball stud seals for excessive wear, and clean the threads on the ball studs.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What should be detached from the relay rod for the 2007 Chevrolet Silverado 1500? Posted by Customer
    A:
    The steering linkage shock absorber, if applicable.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What tools can be used to tighten the steering linkage installer for the 2007 Chevrolet Silverado 1500 Classic? Posted by Customer
    A:
    Use either the J 29193 Steering Linkage Installer (12 mm) or the J 29194 Steering Linkage Installer (14 mm).
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What should be done if equipped for the 2000 Chevrolet Tahoe? Posted by Customer
    A:
    If equipped, install the steering shock absorber to the relay rod.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What should be done after removing the inner tie rods for the 2003 GMC Savana 3500? Posted by Customer
    A:
    Rotate the steering linkage to detach the inner tie rods from the relay rod.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What is the procedure after removing the old relay rod for the 2003 GMC Savana 2500? Posted by Customer
    A:
    Install the new relay rod, connecting it to the pitman arm and idler arm.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What tools can be used to tighten and seat the tapers for the 2006 GMC Sierra 1500? Posted by Customer
    A:
    Use either the J 29193 Steering Linkage Installer (12 mm) or the J 29194 Steering Linkage Installer (14 mm).
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What type of nuts should be installed for the pitman arm and idler arm for the 2006 GMC Yukon? Posted by Customer
    A:
    Install new prevailing torque nuts for the pitman arm and idler arm, tightening them to 62 Nm (46 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What tools are needed to tighten the connections during installation for the 2001 GMC Yukon XL 1500? Posted by Customer
    A:
    Utilize the J 29193 Steering Linkage Installer (12 mm) and J 29194 Steering Linkage Installer (14 mm) to tighten the connections.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    Q:
    What are the final steps after installing the relay rod for the 2007 GMC Sierra 1500 Classic? Posted by Customer
    A:
    Install the tie rod ends, reattach the steering damper if equipped, replace the engine protection shield if applicable, lower the vehicle, and check the wheel alignment.
    Posted by ChevyPartsGiant Specialist
    See vehicle specific detailed answers for this Center Link
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Center Link 19149619 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 19149619 Center Link is available in the market under the name GM Center Link. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 19149619 Center Link fits certain Chevrolet Tahoe, Silverado 1500, Express 2500 models, as well as GMC Sierra 1500, Yukon, Savana 2500. Additionally, it is compatible with Cadillac Escalade, Escalade ESV, Escalade EXT models.
The original GM component designated by manufacturer part number 19149619 maintains top performance when functioning as the Rod Kit, Steering Connecting; Drag Link unit. The component 19149619 is constructed from durable material and its dimensions span 57.0 x 6.7 x 2.5 inches while weighing 10.80 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. The part 19149619 has available replacement options 89040375, 12471375. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
