OEM Chevrolet Prizm Throttle Body

Chevrolet Prizm Throttle Body Parts and Q&A

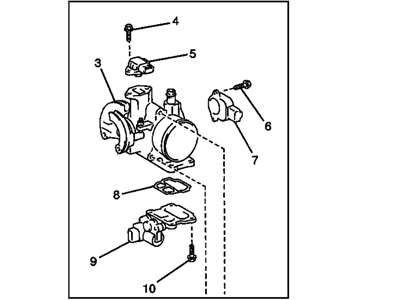

• Throttle Body
  94859010
  Q: How to replace the throttle body assembly on Chevrolet Prizm?

  A:

  When replacing the Throttle Body assembly, go ahead and remove the air inlet duct along with the positive crankcase ventilation (PCV) breather hose and the throttle position (TP) sensor connector. Rotate the throttle lever to separate the accelerator cable and the throttle valve cable if there exists, disengage the electrical connector from the idle air control valve . Drain the cooling system after removal of the 2 coolant hoses from the Throttle Body. The next step would be to remove the accelerator cable bracket and Throttle Body bolt and then Throttle Body fasteners 2 . Remove the trottle body and the gasket from the Intake Manifold while clearing up all remaining Throttle Body Gasket found in the Intake Manifold. For the installation lay a new Throttle Body Gasket , install the Throttle Body onto the Intake Manifold using the 2 nuts . Install the accelerator cable bracket and the 3 fasteners back onto the Throttle Body while making sure to reposition the Throttle Body as necessary. Tighten the 3 Throttle Body fasters to 20 n.m(15 lb.ft), and connect the 2 coolant hoses to the Throttle Body, the pcv hose ,the iac valve electrical connector and the tp sensor electrical connector. Lastly, fit the inlet air duct and replenish the cooling system.
• Throttle Body
  94859501
  Q: How to service and repair the Throttle Body on Chevrolet Prizm?

  A:

  Start your Throttle Body service and repair by taking off the air inlet duct and pcv breather hose and throttle position sensor connector. Operating the throttle lever disconnects both accelerator and throttle valve cables and necessitates connector removal from the idle air control (IAC) valve. Start service by draining coolant system fluid then removing the 2 Throttle Body coolant hoses. Start by removing three components: the accelerator cable bracket followed by the Throttle Body bolt and the next two Throttle Body fasteners. Extract the Throttle Body from the Intake Manifold and its gasket while cleaning all remaining gasket residue off the Intake Manifold. Install the new Throttle Body Gasket onto the Intake Manifold and secure the Throttle Body with its two nuts. Connect the accelerator cable bracket to the Throttle Body via the bolt before relocating the Throttle Body while securing its 3 fasteners at 20 n.m (15 lb ft torque). Establish connection between the Throttle Body and the 2 coolant hoses before linking the pcv hose and then connecting the iac valve electrical connector and finally attaching the tp sensor electrical connector. Close the cooling system after installing the air inlet duct.
