How to replace the radiator fan and fan shroud on Chevrolet Silverado 1500?

People should start the Radiator fan and shroud replacement process by removing the radiator inlet hose clip at the fan shroud before positioning the surge tank inlet hose clamp on the radiator while taking out the inlet hose connecting to the radiator. The first step involves removing the Radiator fan wiring harness clip before disconnecting all electrical connectors for the radiator fans. In case of need, proceed to open the engine oil cooler line clamp and extract the connecting lines from this attachment point. To proceed next remove the Radiator fan shroud bolts before extracting both the Radiator fan together with the shroud. To properly install the Radiator fan and shroud place their three lower tabs inside the radiator support flange while keeping the shroud parallel to the radiator. Secure the Radiator fan shroud bolts by torquing each one to 9 nm (80 inch lbs.). First install the cooler lines into the clip before closing it while connecting electrical connectors to the radiator fans. Reattach the wiring harness clip to the shroud while you install the surge tank inlet hose to the radiator which needs repositioning for the inlet hose clamp at the radiator before clip engagement at the fan shroud.

How to service the lower fan shroud on Chevrolet Silverado 1500?

The first step to reach the lower Fan Shroud is to take off the cooling fan. The lower Fan Shroud requires installation of an Engine Oil Cooler hose clip when this feature exists in the vehicle. You should lift the lower Fan Shroud which allows you to remove it from the retaining clips on the Radiator. The process of installation requires users to set the lower Fan Shroud onto Radiator retaining clips before applying firm pressure. Reinstallation of the oil cooler hose clip to the lower Fan Shroud should be done before installing the cooling fan.

OEM Chevrolet Silverado 1500 Fan Shroud

Radiator Fan Shroud

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Fan Shrouds found

View related parts

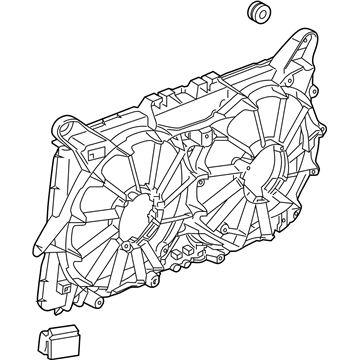

Chevrolet Silverado 1500 Fan Shroud, Rear Part Number: 23123635
$87.68 MSRP: $167.23
You Save: $79.55 (48%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Rear; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly; Shroud, Radiator Fan Shroud
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 Chevrolet Silverado 1500 | Custom, Custom Trail Boss, High Country, LS, LT, LT Trail Boss, LTZ, RST, SSV, WT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
View related parts

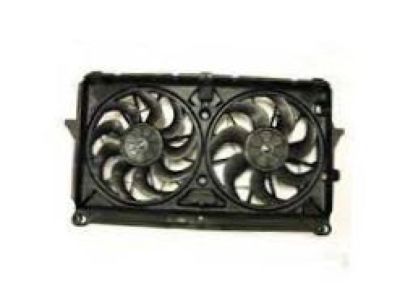

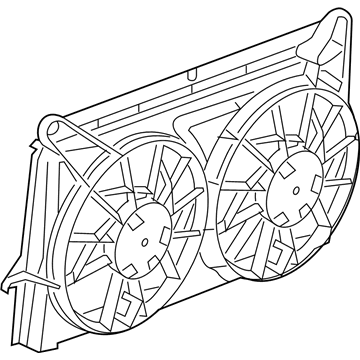

Chevrolet Silverado 1500 Fan Shroud Part Number: 15780789
$224.71 MSRP: $424.99
You Save: $200.28 (48%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud Kit, Radiator Fan Shroud; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly; Shroud
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 Chevrolet Silverado 1500 | Hybrid, LS, LT, LTZ, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
View related parts

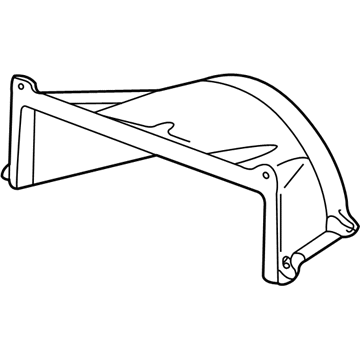

Chevrolet Silverado 1500 Lower Shroud Part Number: 25835451
$86.68 MSRP: $135.76
You Save: $49.08 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Lower; Fan Shroud; Shroud, Radiator Fan Shroud
- Position: Lower
- Replaces: 15267486, 15067754, 15765441
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Chevrolet Silverado 1500 | LS, LT, LTZ, SS, Z71 Off-Road | 8 Cyl 6.0 L GAS
View related parts

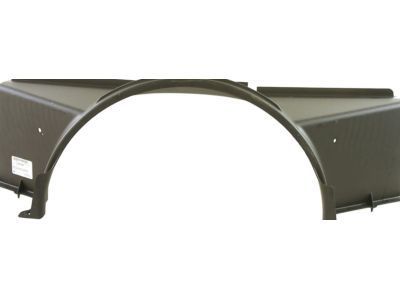

Chevrolet Silverado 1500 Upper Shroud Part Number: 15088330
$79.87 MSRP: $125.10
You Save: $45.23 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Fan Shroud
- Position: Upper
- Replaces: 15740070
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Chevrolet Silverado 1500 | LS, LT, LTZ, SS, Z71 Off-Road | 8 Cyl 6.0 L GAS
View related parts

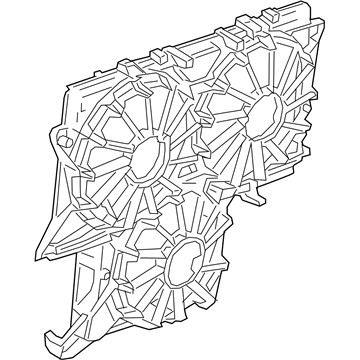

Chevrolet Silverado 1500 Fan Shroud, Rear Part Number: 84203930
$101.42 MSRP: $150.92
You Save: $49.50 (33%)
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Rear; Shroud, Radiator Fan Shroud
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2020-2023 Chevrolet Silverado 1500 | Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, RST | 6 Cyl 3.0 L DIESEL
View related parts
Chevrolet Silverado 1500 Fan Shroud, Rear Part Number: 84120130
$101.51 MSRP: $151.04
You Save: $49.53 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Rear; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly; Shroud, Radiator Fan Shroud
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2023 Chevrolet Silverado 1500 | Custom, Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, PPV, RST, SSV, WT, ZR2 | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Silverado 1500 Fan Shroud, Rear Part Number: 85112427
$132.48 MSRP: $198.02
You Save: $65.54 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Rear; Shroud, Radiator Fan Shroud
- Position: Rear
- Replaces: 84174291
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2023 Chevrolet Silverado 1500 | Custom, Custom Trail Boss, LT, LT Trail Boss, RST, WT | 4 Cyl 2.7 L GAS
View related parts
Chevrolet Silverado 1500 Fan Shroud Part Number: 25880379
$239.50 MSRP: $358.00
You Save: $118.50 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 Chevrolet Silverado 1500 | Hybrid | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Chevrolet Silverado 1500 Fan Shroud Part Number: 15780788
$185.27 MSRP: $350.41
You Save: $165.14 (48%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud Kit, Radiator Fan Shroud; Dual Radiator and Condenser Fan Assembly; Shroud
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 Chevrolet Silverado 1500 | Hybrid, LS, LT, LTZ, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
View related parts
Chevrolet Silverado 1500 Upper Shroud Part Number: 15088328
$77.77 MSRP: $121.82
You Save: $44.05 (37%)
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Shroud; Fan Shroud
- Position: Upper
- Replaces: 15707521
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Chevrolet Silverado 1500 | LS, LT, LTZ, SS, Z71 Off-Road | 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 1500 Fan Shroud, Lower Part Number: 15267487
$4.59 MSRP: $7.19
You Save: $2.60 (37%)
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Lower; Lower Shroud; Shroud; Shroud, Radiator Fan Shroud
- Position: Lower
- Replaces: 15164394, 15067753, 15707563, 15765440
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Chevrolet Silverado 1500 | LS, LT, LTZ, SS, Z71 Off-Road | 8 Cyl 6.0 L GAS
View related parts
Chevrolet Silverado 1500 Fan Shroud Part Number: 89023365
Product Specifications
- Other Name: Shroud Kit, Engine Electrical Coolant Fan; Cooling Fan Assembly; Shroud; Shroud Kit, Radiator Fan Shroud
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Chevrolet Silverado 1500 | Base, Hybrid, LS, LT, LTZ, WT, Z71 Off-Road | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS
View related parts
Chevrolet Silverado 1500 Lower Shroud Part Number: 15707564
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Fan Shroud
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 1500 | Base, LS, LT, WT | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Silverado 1500 Lower Shroud Part Number: 15707562
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Shroud; Fan Shroud
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 1500 | Base, LS, LT, WT, Z71 Off-Road | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Silverado 1500 Upper Shroud Part Number: 15088329
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Fan Shroud
- Position: Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 1500 | Base, LS, LT, WT | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Silverado 1500 Upper Shroud Part Number: 15088327
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Shroud; Fan Shroud
- Position: Upper
- Replaces: 15707519
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Silverado 1500 | Base, LS, LT, WT, Z71 Off-Road | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Silverado 1500 Fan Shroud Part Number: 23420530
$163.97 MSRP: $258.01
You Save: $94.04 (37%)
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2018 Chevrolet Silverado 1500 | Custom, High Country, LS, LT, LTZ, SSV, WT | 6 Cyl 4.3 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS

Chevrolet Silverado 1500 Fan Shroud

Want to cut long-term maintenance and repair costs? Choose OEM Fan Shroud. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Silverado 1500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Silverado 1500 Fan Shroud includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Silverado 1500 Fan Shroud Parts and Q&A

Upper Shroud
15088328
Q: How to replace the radiator fan and fan shroud on Chevrolet Silverado 1500?
A:
People should start the Radiator fan and shroud replacement process by removing the radiator inlet hose clip at the fan shroud before positioning the surge tank inlet hose clamp on the radiator while taking out the inlet hose connecting to the radiator. The first step involves removing the Radiator fan wiring harness clip before disconnecting all electrical connectors for the radiator fans. In case of need, proceed to open the engine oil cooler line clamp and extract the connecting lines from this attachment point. To proceed next remove the Radiator fan shroud bolts before extracting both the Radiator fan together with the shroud. To properly install the Radiator fan and shroud place their three lower tabs inside the radiator support flange while keeping the shroud parallel to the radiator. Secure the Radiator fan shroud bolts by torquing each one to 9 nm (80 inch lbs.). First install the cooler lines into the clip before closing it while connecting electrical connectors to the radiator fans. Reattach the wiring harness clip to the shroud while you install the surge tank inlet hose to the radiator which needs repositioning for the inlet hose clamp at the radiator before clip engagement at the fan shroud.
Lower Shroud
25835451
Q: How to service the lower fan shroud on Chevrolet Silverado 1500?
A:
The first step to reach the lower Fan Shroud is to take off the cooling fan. The lower Fan Shroud requires installation of an Engine Oil Cooler hose clip when this feature exists in the vehicle. You should lift the lower Fan Shroud which allows you to remove it from the retaining clips on the Radiator. The process of installation requires users to set the lower Fan Shroud onto Radiator retaining clips before applying firm pressure. Reinstallation of the oil cooler hose clip to the lower Fan Shroud should be done before installing the cooling fan.
