How to replace the rear axle shaft on Chevrolet Trailblazer?

Vehicle elevation is necessary before removing the tire and wheel assembly followed by brake caliper removal for rear Axle Shaft replacement. Begin by uninstalling the rear axle housing gasket and cover followed by disassembling the pinion shaft locking bolt. To handle axles that lack Differential locks remove their pinion shaft. Individuals with locking differentials need to draw the pinion shaft partially from its housing then rotate the case until it contacts the housing. Use a screwdriver to rotate the c-lock until it faces the thrust block position. Push the Axle Shaft flange towards the Differential before removing the c-lock from the button end but be sure to keep the shaft from rotating to prevent gear misalignment. You should slide the new Axle Shaft straight into the rear axle housing until it locks its splines with the Differential side gear. In models lacking a locking Differential install the c-lock on the shaft button of the axle. The c-lock alignment for axes with locking differentials requires partial shaft pinion withdrawal and the lock's ends positioned at the thrust block's surface. When ready, gently push the shaft flange toward the outside to let the c-lock find its spot in the Differential gear before bringing the pinion shaft hole to the Differential case hole. Insert the new pinion shaft locking bolt into position while torquing it to 36 nm (27 ft. Lbs.). Start by placing the rear axle housing cover and gasket back into position then reinstall the brake caliper and tire and wheel assembly. As the last step complete the rear axle lubrication before lowering the vehicle down.

How to replace the front axle shaft on Chevrolet Trailblazer?

The procedure begins by raising the vehicle then taking off tires and wheels and the engine protection shield. First detach the Wheel Speed Sensor wiring harness from its retainer attachment points then disconnect the Wheel Speed Sensor from its harness. Start by removing three bolts: the front brake hose retaining bolt along with the front stabilizer bar link from the lower Control Arm and finally the upper shock module retaining from the shock tower. To begin the replacement process start by taking out the Steering Knuckle Tie Rod End and both left and right upper ball joints pinch bolts and nuts as well as the shock module mounted to the shock tower. The technician needs to remove the Steering Knuckle from the upper Control Arm while detaching the front Axle Shaft from the Steering Knuckle. The front shock module/steering knuckle needs frame support through the use of mechanics wire or hooks. The left side Axle Shaft needs to be released from the Differential carrier assembly by using a brass drift to strike the tripot housing outward with a hammer until the snap ring pressure is overcome. After performing the same procedure at the clutch fork housing assembly on the right side you should remove the Axle Shaft directly from both assemblies. Begin installation by inserting the front Axle Shaft into the front Differential assembly before removing the mechanics wire or hook from the front shock module/steering knuckle. Mount the front Axle Shaft into its slot within the Steering Knuckle before placing and tethering the shock module inside the shock tower. Drive the upper ball joint through the upper Control Arm opening before tightening it down using a pinch bolt and nut which require specific torque specifications. Next install both shock module retaining nuts and then install the front Axle Shaft retaining. Torque the new front Axle Shaft retaining nut to meet 140 nm (103 ft. Lbs.). Install the Tie Rod End back into the Steering Knuckle while also securing its position with stabilizer bar links and front brake hose retaining bolt. Install the front Wheel Speed Sensor wiring harness in its retainers before reconnecting the sensor's electrical connector. The engine protection shield then returns with the tire and wheel assembly and the vehicle must be lowered.

OEM Chevrolet Trailblazer Axle Shaft

Car Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

21 Axle Shafts found

View related parts

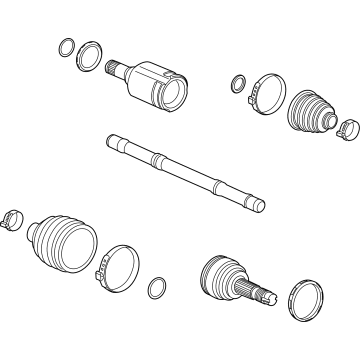

Chevrolet Trailblazer Axle Assembly, Front Passenger Side Part Number: 60007212
$140.95 MSRP: $221.77
You Save: $80.82 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Front Wheel Drive Half; Shaft, Front Wheel Drive Axle
- Position: Front Passenger Side
- Replaced by: 60008699
- Replaces: 60004302, 60005543
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Axle Assembly, Front Driver Side Part Number: 60007213
$110.60 MSRP: $173.24
You Save: $62.64 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Front Wheel Drive Half; Shaft, Front Wheel Drive Axle
- Position: Front Driver Side
- Replaced by: 60008700
- Replaces: 60005544, 60002820, 60004303
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Axle Assembly, Front Driver Side Part Number: 60007211
$97.73 MSRP: $153.09
You Save: $55.36 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Front Wheel Drive Half; Shaft, Front Wheel Drive Axle
- Position: Front Driver Side
- Replaced by: 60008698
- Replaces: 60004301, 60005542
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts

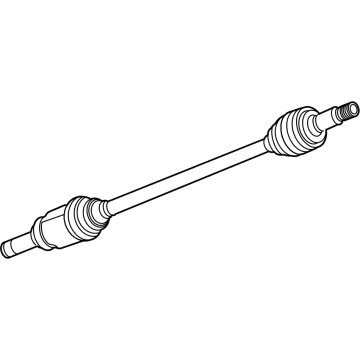

Chevrolet Trailblazer Axle Assembly, Rear Driver Side Part Number: 60006452
$111.56 MSRP: $175.52
You Save: $63.96 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Rear Wheel Drive; Axle Shaft; Shaft, Rear Axle Drive
- Position: Rear Driver Side
- Replaced by: 60008636
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Axle Assembly, Rear Passenger Side Part Number: 60005021
$116.86 MSRP: $183.87
You Save: $67.01 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Rear Wheel Drive; Axle Shaft; Shaft, Rear Axle Drive
- Position: Rear Passenger Side
- Replaced by: 60009519
- Replaces: 42481416
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Axle Assembly, Front Passenger Side Part Number: 60007214
$106.64 MSRP: $167.03
You Save: $60.39 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly-Front Wheel Drive Half; Shaft, Front Wheel Drive Axle
- Position: Front Passenger Side
- Replaced by: 60008701
- Replaces: 60005545, 60004304, 60002821
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Intermediate Shaft, Front Part Number: 12479125
$376.93 MSRP: $593.06
You Save: $216.13 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft, Front Axle; Axle Shaft; Axle Shafts; Intermed Shaft
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 Chevrolet Trailblazer | Base, LS, LT, LTZ, North Face, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

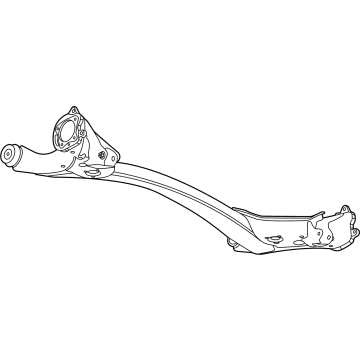

Chevrolet Trailblazer Axle Beam Part Number: 42821860
$850.34 MSRP: $1094.39
You Save: $244.05 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Axle Assembly-Rear Compound Crank; Axle; Axle, Rear Axle
- Replaces: 42729887, 42768401
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Axle Beam, Rear Part Number: 42729884
$850.34 MSRP: $1094.39
You Save: $244.05 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Axle Assembly-Rear Compound Crank; Axle Shaft; Axle; Axle, Rear Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts

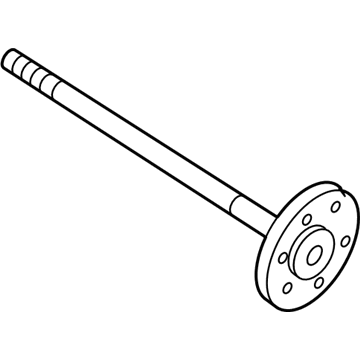

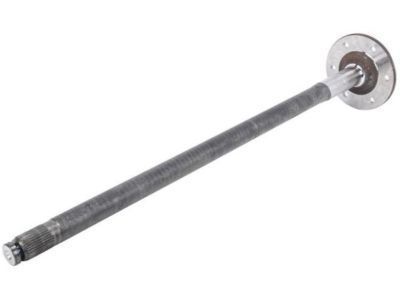

Chevrolet Trailblazer Axle Shaft, Rear Passenger Side Part Number: 19133413
Product Specifications
- Other Name: Shaft, Rear Axle (Right-Hand); Axle Shafts; Axle; Shaft, Rear Axle Drive
- Position: Rear Passenger Side
- Replaces: 12479161
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 Chevrolet Trailblazer | Base, LS, LT, LTZ, North Face, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

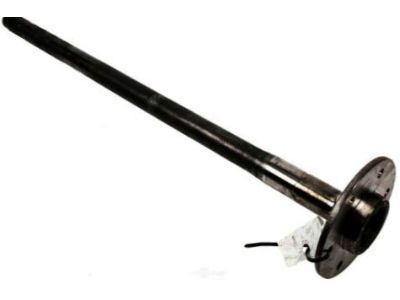

Chevrolet Trailblazer Axle Shaft Part Number: 88965786
Product Specifications
- Other Name: Shaft, Rear Axle Drive; Axle Shafts; Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Trailblazer | LS, LT, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Trailblazer Axle Shaft Part Number: 88965787
Product Specifications
- Other Name: Shaft, Rear Axle Drive; Axle Shafts; Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chevrolet Trailblazer | Base, LS, LT, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

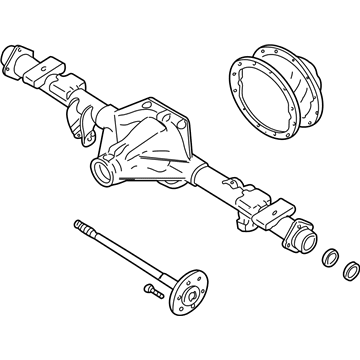

Chevrolet Trailblazer Axle Assembly, Rear Part Number: 15939021
Product Specifications
- Other Name: Axle Assembly-Rear (4.10 Ratio); Axle Shaft; Axle, Rear Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Trailblazer | LS, LT, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Trailblazer Axle Assembly, Rear Part Number: 25926158
Product Specifications
- Other Name: Axle Assembly-Rear (4.10 Ratio); Axle Shaft
- Position: Rear
- Replaces: 15842180
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2008 Chevrolet Trailblazer | Base, LS, LT, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Trailblazer Axle Assembly, Rear Part Number: 15134677
Product Specifications
- Other Name: Axle, Rear Axle; Axle Shaft
- Position: Rear
- Replaces: 15065723, 15107453, 15171759
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2005 Chevrolet Trailblazer | LS, LT, LTZ, North Face | 6 Cyl 4.2 L GAS
View related parts
Chevrolet Trailblazer Axle Assembly, Rear Part Number: 15844590
Product Specifications
- Other Name: Axle Assembly-Rear (3.73 Ratio); Axle Shaft; Axle, Rear Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 Chevrolet Trailblazer | Base, LT, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

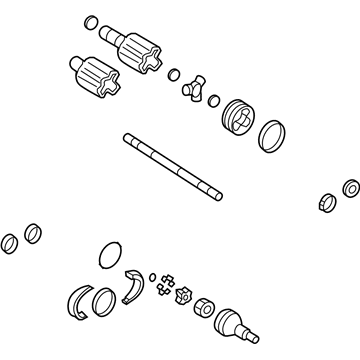

Chevrolet Trailblazer Axle Assembly, Front Part Number: 26079789
$390.96 MSRP: $615.16
You Save: $224.20 (37%)
Product Specifications
- Other Name: Shaft Kit, Front Wheel Drive; CV Axle Assembly; Axle Shaft; CV Axle; Shaft Kit, Front Axle
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 Chevrolet Trailblazer | Base, LS, LT, LTZ, North Face, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Trailblazer Axle Assembly, Rear Part Number: 25920386
Product Specifications
- Other Name: Axle; Axle Shaft; Axle, Rear Axle
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009 Chevrolet Trailblazer | LT, SS | 6 Cyl 4.2 L GAS, 8 Cyl 6.0 L GAS
View related parts

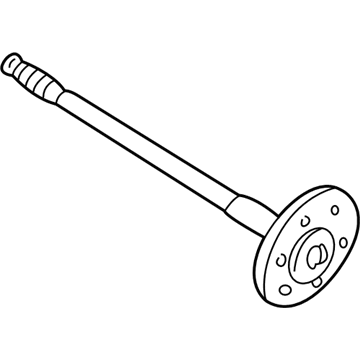

Chevrolet Trailblazer Axle Shaft, Rear Driver Side Part Number: 19133412
Product Specifications
- Other Name: Shaft, Rear Axle Drive; Axle Shafts; Axle
- Position: Rear Driver Side
- Replaces: 12479160
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 Chevrolet Trailblazer | Base, LS, LT, LTZ, North Face, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Trailblazer Axle Shaft, Rear Driver Side Part Number: 19133409
Product Specifications
- Other Name: Shaft, Rear Axle Drive; Axle Shafts
- Position: Rear Driver Side
- Replaces: 12479016
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 Chevrolet Trailblazer | Base, LS, LT, LTZ, North Face, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS

| Page 1 of 2 |Next >

1-20 of 21 Results

Chevrolet Trailblazer Axle Shaft

Want to cut long-term maintenance and repair costs? Choose OEM Axle Shaft. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Trailblazer parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Trailblazer Axle Shaft includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Axle Shaft in Chevrolet Trailblazer cars is a very important part of a vehicle, transmits power from the differential to the driving wheels for independence in rotation. In this design, there is an improvement of the grip, most importantly around the turns. Manufacturers install Solid axles and half shafts in Chevrolet Trailblazer models depending with the suspension type. In very old generation vehicles, the system that connects the wheels at both ends is called the solid axle whereas in vehicles having independent suspension the system is known as the half shafts. The initial key difference in these axles types is making and their usage, solid axles contain the differential, and halfshafts link the transaxle to the wheels and may be exposed to wear at CV joints. In Gernal the Axle Shaft is very important for the performance and handling of the Chevrolet Trailblazer for power transmission and control of motions.

Chevrolet Trailblazer Axle Shaft Parts and Q&A

Axle Shaft, Rear Passenger Side
19133413
Q: How to replace the rear axle shaft on Chevrolet Trailblazer?
A:
Vehicle elevation is necessary before removing the tire and wheel assembly followed by brake caliper removal for rear Axle Shaft replacement. Begin by uninstalling the rear axle housing gasket and cover followed by disassembling the pinion shaft locking bolt. To handle axles that lack Differential locks remove their pinion shaft. Individuals with locking differentials need to draw the pinion shaft partially from its housing then rotate the case until it contacts the housing. Use a screwdriver to rotate the c-lock until it faces the thrust block position. Push the Axle Shaft flange towards the Differential before removing the c-lock from the button end but be sure to keep the shaft from rotating to prevent gear misalignment. You should slide the new Axle Shaft straight into the rear axle housing until it locks its splines with the Differential side gear. In models lacking a locking Differential install the c-lock on the shaft button of the axle. The c-lock alignment for axes with locking differentials requires partial shaft pinion withdrawal and the lock's ends positioned at the thrust block's surface. When ready, gently push the shaft flange toward the outside to let the c-lock find its spot in the Differential gear before bringing the pinion shaft hole to the Differential case hole. Insert the new pinion shaft locking bolt into position while torquing it to 36 nm (27 ft. Lbs.). Start by placing the rear axle housing cover and gasket back into position then reinstall the brake caliper and tire and wheel assembly. As the last step complete the rear axle lubrication before lowering the vehicle down.
Axle Assembly, Front
26079789
Q: How to replace the front axle shaft on Chevrolet Trailblazer?
A:
The procedure begins by raising the vehicle then taking off tires and wheels and the engine protection shield. First detach the Wheel Speed Sensor wiring harness from its retainer attachment points then disconnect the Wheel Speed Sensor from its harness. Start by removing three bolts: the front brake hose retaining bolt along with the front stabilizer bar link from the lower Control Arm and finally the upper shock module retaining from the shock tower. To begin the replacement process start by taking out the Steering Knuckle Tie Rod End and both left and right upper ball joints pinch bolts and nuts as well as the shock module mounted to the shock tower. The technician needs to remove the Steering Knuckle from the upper Control Arm while detaching the front Axle Shaft from the Steering Knuckle. The front shock module/steering knuckle needs frame support through the use of mechanics wire or hooks. The left side Axle Shaft needs to be released from the Differential carrier assembly by using a brass drift to strike the tripot housing outward with a hammer until the snap ring pressure is overcome. After performing the same procedure at the clutch fork housing assembly on the right side you should remove the Axle Shaft directly from both assemblies. Begin installation by inserting the front Axle Shaft into the front Differential assembly before removing the mechanics wire or hook from the front shock module/steering knuckle. Mount the front Axle Shaft into its slot within the Steering Knuckle before placing and tethering the shock module inside the shock tower. Drive the upper ball joint through the upper Control Arm opening before tightening it down using a pinch bolt and nut which require specific torque specifications. Next install both shock module retaining nuts and then install the front Axle Shaft retaining. Torque the new front Axle Shaft retaining nut to meet 140 nm (103 ft. Lbs.). Install the Tie Rod End back into the Steering Knuckle while also securing its position with stabilizer bar links and front brake hose retaining bolt. Install the front Wheel Speed Sensor wiring harness in its retainers before reconnecting the sensor's electrical connector. The engine protection shield then returns with the tire and wheel assembly and the vehicle must be lowered.
