49 Transmission Pans found

View related parts

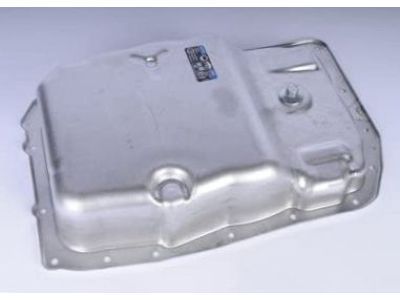

Chevrolet Oil Pan Part Number: 24239529
$30.62 MSRP: $50.11
You Save: $19.49 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Corvette | 2006-2014 | 427, 427 Limited Edition Z06, Base, Grand Sport, Stingray, Z06, Z06 Carbon, ZR1 | 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts

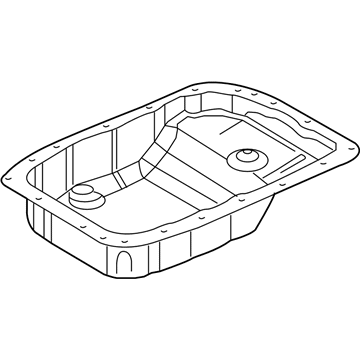

Chevrolet Oil Pan Part Number: 24229658
$92.38 MSRP: $152.17
You Save: $59.79 (40%)
ADD TO CART
Product Specifications
- Other Name: Pan Kit, Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan; Filter; Transmission Oil Pan
- Replaces: 24209295, 24215535, 24210915
Fits the following Chevrolet Models:
- Astro | 1999-2005 | Base, LS, LT | 6 Cyl 4.3 L GAS
- Avalanche | 2007-2008 | LS, LT, LTZ | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Avalanche 1500 | 2002-2006 | Base, LS, LT, North Face, On Road Edition, WBH, Z66, Z71 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2002-2006 | Base, LS, LT | 8 Cyl 8.1 L GAS
- Blazer | 1998-2005 | Base, LS, LT, Trailblazer, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
- Colorado | 2004-2005 | Base, LS, Sport, Sport LS, Z71, Z71 LS, Z85, Z85 LS | 4 Cyl 2.8 L GAS, 5 Cyl 3.5 L GAS
- Express 1500 | 2003-2009 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Express 2500 | 2003-2009 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Express 3500 | 2003-2009 | Base, LS, LT | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- S10 | 1998-2003 | Base, LS, SS, Xtreme, ZR2, ZR5 | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View More
View related parts

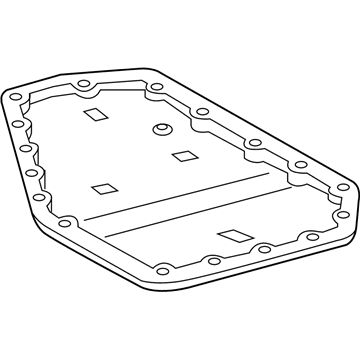

Chevrolet Oil Pan Part Number: 24240207
$24.13 MSRP: $39.75
You Save: $15.62 (40%)
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Transmission Oil Pan; Transmission Pan; Pan Kit, Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Colorado | 2006-2012 | LS, LT, WT | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
- Express 1500 | 2010-2014 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX
- Express 2500 | 2010-2014 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.6 L DIESEL
- Express 3500 | 2010-2014 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.6 L DIESEL
- Silverado 1500 | 2008-2013 | Hybrid, LS, LT, LTZ, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
- Silverado 2500 HD | 2008-2013 | LT, LTZ, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Silverado 3500 HD | 2008-2013 | LT, LTZ, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Suburban 1500 | 2008-2009 | LS, LT, LTZ | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Suburban 2500 | 2008-2009 | LS, LT | 8 Cyl 6.0 L GAS
- Tahoe | 2009 | LS, LT, LTZ | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX
View More
View related parts

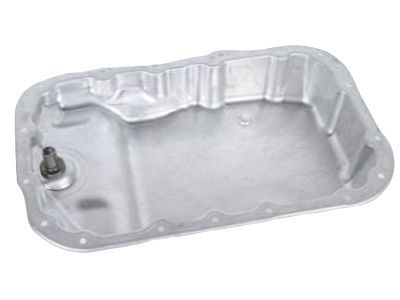

Chevrolet Oil Pan Part Number: 24207558
$20.66 MSRP: $55.25
You Save: $34.59 (63%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Kit, Transmission Oil Pan; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 08651914, 8651914
Fits the following Chevrolet Models:
- Lumina | 1995-1999 | Base, LS, LTZ | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
- Monte Carlo | 1995-1998 | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
- Venture | 1997-1998 | Base, LS | 6 Cyl 3.4 L GAS
View More
View related parts
Chevrolet Oil Pan Part Number: 24048641
$179.50 MSRP: $282.38
You Save: $102.88 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan-Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Corvette | 2023-2024 | Z06 | 8 Cyl 5.5 L GAS
View related parts
Chevrolet Oil Pan Part Number: 24294924
$53.35 MSRP: $83.56
You Save: $30.21 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly, Automatic Transmission Fluid; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24293765
Fits the following Chevrolet Models:
- Camaro | 2020-2024 | LS, LT, LT1, SS, ZL1 | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Oil Pan Part Number: 24045041
$41.05 MSRP: $64.30
You Save: $23.25 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Colorado | 2023 | LT, Trail Boss, WT, Z71, ZR2 | 4 Cyl 2.7 L GAS
View related parts
Chevrolet Transmission Pan Part Number: 29544374
$25.19 MSRP: $39.45
You Save: $14.26 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan, Transmission Oil Pan; Automatic Transmission Oil Pan
Fits the following Chevrolet Models:
- Silverado 1500 | 2009-2013 | Hybrid | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
- Tahoe | 2008-2013 | Hybrid | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Chevrolet Transmission Pan Part Number: 24288491
$143.71 MSRP: $228.15
You Save: $84.44 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Suburban | 2018-2020 | LS, LT, Premier | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Tahoe | 2018-2020 | LS, LT, PPV, Premier, SSV | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Transmission Pan Part Number: 25188123
$66.17 MSRP: $103.69
You Save: $37.52 (37%)
ADD TO CART
Product Specifications
- Other Name: Pan-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Spark | 2013-2014 | LS, LT | 4 Cyl 1.2 L GAS
- Spark EV | 2014 | LT | BATTERY EV (EV/BEV)
View related parts
Chevrolet Oil Pan Part Number: 24274615
$44.33 MSRP: $73.02
You Save: $28.69 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24269568
Fits the following Chevrolet Models:
- Corvette | 2015-2019 | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Oil Pan Part Number: 24046450
$59.25 MSRP: $120.00
You Save: $60.75 (51%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan-Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24299329, 24045738
Fits the following Chevrolet Models:
- Corvette | 2020-2024 | E-Ray, Stingray | 8 Cyl 6.2 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L GAS
View related parts
Chevrolet Oil Pan Part Number: 24226851
$22.58 MSRP: $37.20
You Save: $14.62 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Transmission Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Express 1500 | 2010-2014 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX
- Express 2500 | 2010-2020 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Express 3500 | 2010-2020 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Silverado 2500 HD | 2007-2019 | High Country, LT, LTZ, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Silverado 3500 HD | 2007-2019 | High Country, LT, LTZ, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Suburban 2500 | 2007-2013 | LS, LT, LTZ | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View More
View related parts
Chevrolet Transmission Pan Part Number: 19317871
$60.20 MSRP: $103.39
You Save: $43.19 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly, Automatic Transmission Fluid; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
- Replaces: 19316511, 19317763
Fits the following Chevrolet Models:
- City Express | 2015-2018 | LS, LT | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Oil Pan Part Number: 24299329
$59.25 MSRP: $120.00
You Save: $60.75 (51%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan, Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
- Replaced by: 24046450
Fits the following Chevrolet Models:
- Corvette | 2020-2021 | Stingray | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Oil Pan Part Number: 24045038
$43.97 MSRP: $68.88
You Save: $24.91 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Transmission Pan; Pan, Transmission Oil Pan
- Replaces: 24288996, 24274735, 24278775, 24291926, 24279518
Fits the following Chevrolet Models:
- Silverado 1500 | 2019-2023 | Custom, Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, PPV, RST, SSV, WT, ZR2 | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Silverado 1500 LD | 2019 | Custom, LT, WT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Silverado 1500 LTD | 2022 | Custom, Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, RST, SSV, WT | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View More
View related parts
Chevrolet Transmission Pan Part Number: 24203769
$43.14 MSRP: $64.20
You Save: $21.06 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Trans Pan; Automatic Transmission Oil Pan
Fits the following Chevrolet Models:
- Cobalt | 2005-2008 | Base, LS, LT, LTZ, Sport, SS | 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS
- HHR | 2006-2008 | LS, LS Panel, LT, LT Panel | 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS
- Malibu | 2008 | Hybrid, LS, LT, LTZ | 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.4 L GAS
View More
View related parts
Chevrolet Transmission Pan Part Number: 24243526
$33.54 MSRP: $52.51
You Save: $18.97 (37%)
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Camaro | 2010-2015 | LS, LT | 6 Cyl 3.6 L GAS
View related parts
Chevrolet Transmission Pan Part Number: 8643574
Product Specifications
- Other Name: Pan-Automatic Transmission Oil; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Cavalier | 1995-2001 | Base, LS, RS, Z24 | 4 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS, 4 Cyl 2.3 L GAS, 4 Cyl 2.4 L GAS
View related parts
Chevrolet Transmission Pan Part Number: 24245512
$33.57 MSRP: $52.57
You Save: $19.00 (37%)
Product Specifications
- Other Name: Pan Assembly-Automatic Transmission Fluid; Automatic Transmission Oil Pan; Pan, Transmission Oil Pan
Fits the following Chevrolet Models:
- Caprice | 2012-2017 | PPV | 6 Cyl 3.6 L FLEX

| Page 1 of 3 |Next >

1-20 of 49 Results

Chevrolet Transmission Pan

Choose OEM Transmission Pan, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Chevrolet's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsGiant.com, you'll find it easy to get top-quality OEM Chevrolet Transmission Pan. You can shop at highly competitive prices and protect your budget. All our genuine Chevrolet parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Chevrolet Transmission Pan Parts and Q&A

Oil Pan
8667545
Q: How to service and repair the transmission pan on Chevrolet Camaro?
A:
Maintenance of the fluid pan begins by properly supporting the vehicle under a suitable height. A drain pan should be positioned beneath the transmission Oil Pan while you remove only the front and side pan bolts but leave the rear bolts at four turns of looseness. Use a rubber mallet to gently strike the Oil Pan before fluid drains from it. After draining proceed to remove the additional Oil Pan bolts so the pan with its gasket can be removed. The transmission case along with Oil Pan gasket surfaces require cleaning with solvent before air drying until the old gasket material leaves no residue. The installation process starts with placing the Oil Pan and a new gasket which must be followed by tightening the Oil Pan bolts alternately and evenly to 11 nm (97 inch lbs.). Complete the fluid filling process by using dexron iii or the alternative dexron iii standard and conduct a leak test on the Oil Pan gasket.
Oil Pan
24206181
Q: How to replace the transmission pan on a 4T45-E automatic transaxle on Chevrolet Malibu?
A:
When replacing an Oil Pan for a 4t45-e automatic transaxle you should first position the vehicle properly along with supporting it adequately. After hoisting the vehicle position a drain pan below the transaxle Oil Pan. First remove front Oil Pan bolts together with the ones located on the sides and then turn the rear bolts four turns for easier removal. Completely remove the Oil Pan by using small pry tools, while preventing damages to the transaxle case and sealing points. You can assist the process by using a rubber mallet or by carefully prying the pan gently to let the oil drain. Few more bolts remain before the Oil Pan removal and Oil Pan Gasket removal process while properly cleaning off all remaining old gasket material. Use solvent to clean both transaxle case and Oil Pan Gasket surfaces before letting them dry naturally. Start the Oil Pan bolts manually then tighten them to 12 n.m (9 lb ft). The transaxle requires a refill of dexron(R) iii p/n 21019223 transaxle fluid or its equivalent to reach the specified fluid amounts of 6.5 l (6.9 qt) for bottom pan removal and 9 l (9.5 qt) for complete overhaul or 12.2 l (12.9 qt) for dry capacity at this stage. Begin the engine operation followed by warming the transaxle system then inspect all fluids for leaks while monitoring the fluid level.
