How to replace the rear brake calipers on GMC Savana 3500?

Before replacing the rear brake caliper check the brake master cylinder reservoir fluid level; no fluid needs to be drained when the fluid stands at the midway point between maximum and minimum marks but fluid should be drained if it sits higher than the midpoint. Lift the vehicle while setting it on supports before taking off the tire and wheel unit. Push the brake caliper pistons back by pressing the c-clamp down onto the top of the housing from the outside until the pistons are fully sealed inside. Put on a rubber cover to avoid brake fluid loss while cleaning the hose end. Disconnect the brake hose to caliper bolt to discard both copper brake hose gaskets. You must first disconnect the caliper guide bolt and detach the brake caliper from the assembly. Before fitting new brake pads compress the piston smoothly with a c-clamp through the caliper bores using an old Brake Pad or metal plate as protection. Lift and pull the inner edge of the caliper boots to remove air from their space and keep the boots lower than the top of the pistons. Place the brake caliper over the mounting bracket after discarding old adhesive and cleaning bolt threads with brake cleaner to put threadlocker gm part 12345493 (Canadian Part 10953488) on the bolt threads. Fit the brake caliper mounting bolts and tighten the guide pin bolts to 34 nm (25 ft. Lbs.) for 15 series models and 72 nm (53 ft. Lbs.) for 25/35 series models. Place a rubber cap aside from the brake hose fitting then put two new cupper brake hose gaskets onto the fitting receptacle before connecting the brake hose to caliper bolt. Tighten the bolt to 40 nm (30 ft. Lbs.). Release hydraulic pressure from the brake system then put back tire and wheel before placing the vehicle down and filling the reservoir with fresh brake fluid to required level.

How to service and repair the rear brake calipers (25/35 Series) on GMC Savana 3500?

To service and repair the rear brake caliper (25/35 series), begin with safety precautions by keeping in mind the irritants of brake dust and brake fluids. First of all, disassemble the brake caliper properly and without using mineral oil substances on a clean bench and remove it off the vehicle. Be alert not to get hurt when using compressed air insert a thin piece of wood in front of the pistons in order to avoid breakage while taking off pistons directing compressed air to the inlet fitting port of the brake hose. Take out the pistons, piston boots, and Piston seals, and then the brake caliper bleed screw and the cap that covers it. Check the brake caliper bores and Piston seal groove spots for seating for too much wear and be sure to retrieve the brake caliper housing if necessary as well as the mounting bracket for wear if it necessitates a replacement. After withdrawing from the brake pad guidance surfaces and components not included in the repair kit, wash all the residues with denatured alcohol before drying using non-lubricated filtered compressed air to ensure the passages are clear. To assemble install the brake caliper bleed screw tightening it to 12 nm (106 inch lbs) then cap it off with the cap of the bleed screw. Lubricate the new Piston seal and brake caliper bore seal groove with brake fluid so that it is not twisted before fitting it. Apply the lubricant to the brake caliper bore and the Piston followed by installing the boot over the Piston, after which it should face the brake caliper housing Piston bore mouth, and it should be fixed in place. Then slide the Piston down to the bottom of the bore and make sure the whole boot is seated properly in both the grooves. Do the same for the other Piston, and put the brake caliper back onto the vehicle.

OEM GMC Savana 3500 Brake Calipers

Caliper

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

23 Brake Calipers found

View related parts
GMC Savana 3500 Caliper Part Number: 19331021
$170.23 MSRP: $328.77
You Save: $158.54 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper, Wheel Brake Cylinder/Caliper; Brake Caliper
- Position: Rear
- Replaces: 18040101, 25848000
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2008 GMC Savana 3500 | Base, LS, LT, SLE | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Caliper Part Number: 19331022
$171.88 MSRP: $331.97
You Save: $160.09 (49%)
ADD TO CART
Product Specifications
- Other Name: Caliper, Wheel Brake Cylinder/Caliper; Brake Caliper
- Position: Rear
- Replaces: 25848001, 18040100
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2008 GMC Savana 3500 | Base, LS, LT, SLE | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Caliper, Driver Side Part Number: 85605661
$92.37 MSRP: $164.94
You Save: $72.57 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Rear Brake (W/O Brake Pads & Bracket); Caliper, Wheel Brake Cylinder/Caliper
- Position: Driver Side
- Replaces: 84786067
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
View related parts
GMC Savana 3500 Caliper, Rear Passenger Side Part Number: 84046263
$99.94 MSRP: $195.66
You Save: $95.72 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Rear Brake (W/O Brake Pads & Bracket; Brake Caliper
- Position: Rear Passenger Side
- Replaced by: 84755504
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2017 GMC Savana 3500 | Base, LS, LT, SLE | 4 Cyl 2.8 L DIESEL, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Caliper, Rear Part Number: 84492612
$106.87 MSRP: $190.84
You Save: $83.97 (44%)
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Rear Brake (W/O Brake Pads & Bracket; Brake Caliper
- Position: Rear
- Replaced by: 85605675
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
View related parts
GMC Savana 3500 Caliper, Driver Side Part Number: 87834254
$192.26 MSRP: $376.42
You Save: $184.16 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket); Caliper, Wheel Brake Cylinder/Caliper
- Position: Driver Side
- Replaces: 84902784
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
View related parts
GMC Savana 3500 Caliper, Rear Driver Side Part Number: 84755503
$99.94 MSRP: $195.65
You Save: $95.71 (49%)
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Rear Brake (W/O Brake Pads & Bracket); Brake Caliper; Caliper, Wheel Brake Cylinder/Caliper; Axle, Rear Axle
- Position: Rear Driver Side
- Replaces: 15751175, 84394396, 84046262
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2020 GMC Savana 3500 | Base, LS, LT, SLE | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Caliper, Passenger Side Part Number: 85605662
$94.20 MSRP: $168.22
You Save: $74.02 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Rear Brake (W/O Brake Pads & Bracket); Caliper, Wheel Brake Cylinder/Caliper
- Position: Passenger Side
- Replaces: 84786068
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
View related parts
GMC Savana 3500 Caliper, Front Passenger Side Part Number: 84394392
$185.79 MSRP: $343.75
You Save: $157.96 (46%)
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket; Brake Caliper; Caliper, Wheel Brake Cylinder/Caliper
- Position: Front Passenger Side
- Replaces: 25846389, 18046220
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2013-2020, 2003-2007 GMC Savana 3500 | Base, LS, LT, SLE | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Caliper, Passenger Side Part Number: 87834253
$192.26 MSRP: $376.42
You Save: $184.16 (49%)
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket); Caliper, Wheel Brake Cylinder/Caliper
- Position: Passenger Side
- Replaces: 84902786
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
View related parts
GMC Savana 3500 Caliper, Rear Passenger Side Part Number: 84755504
$99.94 MSRP: $195.66
You Save: $95.72 (49%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Rear Brake (W/O Brake Pads & Bracket); Brake Caliper; Caliper, Wheel Brake Cylinder/Caliper
- Position: Rear Passenger Side
- Replaces: 15751176, 84394397, 84046263
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2020 GMC Savana 3500 | Base, LS, LT, SLE | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Caliper, Rear Part Number: 84492613
$106.87 MSRP: $190.84
You Save: $83.97 (44%)
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Rear Brake (W/O Brake Pads & Bracket; Brake Caliper
- Position: Rear
- Replaced by: 85605676
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 GMC Savana 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
View related parts
GMC Savana 3500 Caliper, Passenger Side Part Number: 85569602
$96.77 MSRP: $187.82
You Save: $91.05 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket); Caliper, Wheel Brake Cylinder/Caliper
- Position: Passenger Side
- Replaces: 15904195, 23290150, 84828461, 89059121, 23276880, 22842351
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2014 GMC Savana 3500 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Caliper, Passenger Side Part Number: 84803425
$137.69 MSRP: $256.99
You Save: $119.30 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket); Caliper, Wheel Brake Cylinder/Caliper
- Position: Passenger Side
- Replaced by: 87859911
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2020 GMC Savana 3500 | Base, LS, LT, SLE | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Caliper, Driver Side Part Number: 85569601
$72.50 MSRP: $140.30
You Save: $67.80 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket); Caliper, Wheel Brake Cylinder/Caliper
- Position: Driver Side
- Replaces: 15904194, 23276878, 22842352, 84828460, 89059117, 23290149
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2014 GMC Savana 3500 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
GMC Savana 3500 Caliper, Front Driver Side Part Number: 84394384
$109.82 MSRP: $213.14
You Save: $103.32 (49%)
ADD TO CART
Product Specifications
- Other Name: Caliper Assembly-Front Brake (W/O Brake Pads & Bracket; Caliper, Wheel Brake Cylinder/Caliper
- Position: Front Driver Side
- Replaced by: 87859910
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2020 GMC Savana 3500 | Base, LS, LT, SLE | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts

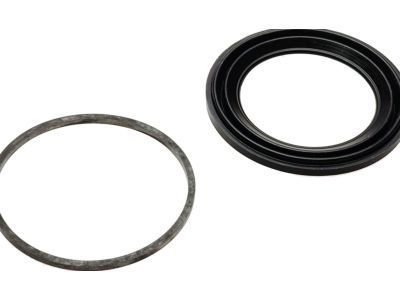

GMC Savana 3500 Overhaul Kit, Front Part Number: 18014749
Product Specifications
- Other Name: Caliper Kit, Front Brake; Brake Caliper Repair Kit; Disc Brake Hardware Kit; Caliper Overhaul Kit; Caliper Kit, Wheel Brake Cylinder/Caliper; Caliper Kit, Wheel Cylinder Piston
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2000 GMC Savana 3500 | Base, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
GMC Savana 3500 Caliper Overhaul Kit, Front Part Number: 18017222
Product Specifications
- Other Name: Caliper Kit, Front Brake; Brake Caliper Repair Kit; Disc Brake Hardware Kit; Caliper Kit, Wheel Brake Cylinder/Caliper; Caliper Kit, Wheel Cylinder Piston
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2002 GMC Savana 3500 | Base, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 8.1 L GAS
View related parts
GMC Savana 3500 Caliper, Front Driver Side Part Number: 18014747
Product Specifications
- Other Name: Caliper Kit, Front Brake; Brake Caliper; Caliper, Wheel Brake Cylinder/Caliper
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 GMC Savana 3500 | Base, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
View related parts
GMC Savana 3500 Caliper, Driver Side Part Number: 18017227
Product Specifications
- Other Name: Caliper, Wheel Brake Cylinder/Caliper; Brake Caliper
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2002 GMC Savana 3500 | Base, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 8.1 L GAS

| Page 1 of 2 |Next >

1-20 of 23 Results

GMC Savana 3500 Brake Calipers

Want to cut long-term maintenance and repair costs? Choose OEM Brake Calipers. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Savana 3500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Savana 3500 Brake Calipers includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Savana 3500 Brake Calipers Parts and Q&A

Caliper
19331021
Q: How to replace the rear brake calipers on GMC Savana 3500?
A:
Before replacing the rear brake caliper check the brake master cylinder reservoir fluid level; no fluid needs to be drained when the fluid stands at the midway point between maximum and minimum marks but fluid should be drained if it sits higher than the midpoint. Lift the vehicle while setting it on supports before taking off the tire and wheel unit. Push the brake caliper pistons back by pressing the c-clamp down onto the top of the housing from the outside until the pistons are fully sealed inside. Put on a rubber cover to avoid brake fluid loss while cleaning the hose end. Disconnect the brake hose to caliper bolt to discard both copper brake hose gaskets. You must first disconnect the caliper guide bolt and detach the brake caliper from the assembly. Before fitting new Brake Pads compress the piston smoothly with a c-clamp through the caliper bores using an old Brake Pad or metal plate as protection. Lift and pull the inner edge of the caliper boots to remove air from their space and keep the boots lower than the top of the pistons. Place the brake caliper over the mounting bracket after discarding old adhesive and cleaning bolt threads with brake cleaner to put threadlocker gm part 12345493 (Canadian Part 10953488) on the bolt threads. Fit the brake caliper mounting bolts and tighten the guide pin bolts to 34 nm (25 ft. Lbs.) for 15 series models and 72 nm (53 ft. Lbs.) for 25/35 series models. Place a rubber cap aside from the brake hose fitting then put two new cupper brake hose gaskets onto the fitting receptacle before connecting the brake hose to caliper bolt. Tighten the bolt to 40 nm (30 ft. Lbs.). Release hydraulic pressure from the brake system then put back tire and wheel before placing the vehicle down and filling the reservoir with fresh brake fluid to required level.
Caliper, Rear Driver Side
84755503
Q: How to service and repair the rear brake calipers (25/35 Series) on GMC Savana 3500?
A:
To service and repair the rear brake caliper (25/35 series), begin with safety precautions by keeping in mind the irritants of brake dust and brake fluids. First of all, disassemble the brake caliper properly and without using mineral oil substances on a clean bench and remove it off the vehicle. Be alert not to get hurt when using compressed air insert a thin piece of wood in front of the Pistons in order to avoid breakage while taking off pistons directing compressed air to the inlet fitting port of the brake hose. Take out the pistons, piston boots, and Piston seals, and then the brake caliper bleed screw and the cap that covers it. Check the brake caliper bores and Piston seal groove spots for seating for too much wear and be sure to retrieve the brake caliper housing if necessary as well as the mounting bracket for wear if it necessitates a replacement. After withdrawing from the brake pad guidance surfaces and components not included in the repair kit, wash all the residues with denatured alcohol before drying using non-lubricated filtered compressed air to ensure the passages are clear. To assemble install the brake caliper bleed screw tightening it to 12 nm (106 inch lbs) then cap it off with the cap of the bleed screw. Lubricate the new Piston seal and brake caliper bore seal groove with brake fluid so that it is not twisted before fitting it. Apply the lubricant to the brake caliper bore and the Piston followed by installing the boot over the Piston, after which it should face the brake caliper housing Piston bore mouth, and it should be fixed in place. Then slide the Piston down to the bottom of the bore and make sure the whole boot is seated properly in both the grooves. Do the same for the other Piston, and put the brake caliper back onto the vehicle.
