Diagram (1 of 1): Air Conditioner & Heater - Compressor & Lines Condenser

1993 Oldsmobile Cutlass Ciera A/C Condenser, Compressor & Lines Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
52482104
Condenser
- Part Notes: Gas

2
14038171
Condenser Insulator
- Part Notes: Upper (2)

3
14038172
Condenser Insulator
- Part Notes: Lower (2)

4
10209406
Condenser Upper Seal

5
10243394
Condenser Bracket
Location: Driver Side
5
10243395
Condenser Bracket
- Location: Passenger Side

6
2724686
Dehydrator
- Part Notes: 4 Cylinder;6 Cylinder, 3.3 Liter

7
10082859
Dehydrator Bracket

8
1136548
Compressor
Part Notes: 6 Cylinder, 3.3 Liter
8
1135417
Compressor
- Part Notes: 4 Cylinder

9
10188049
Hose
Part Notes: Compressor, 3.3 Liter
9
10216112
Hose
- Part Notes: Compressor, 2.2, 2.5 Liter

10
10210593
Tube
- Part Notes: To Evaporator

11
10188052
Tube
- Part Notes: To Accumulator, 4 & 6 Cylinder

6559469
Bearing

52461462
Blower Case

52498869
Blower Motor
$162.58 $91.04
1
Add To Cart

6580056
Clutch
Part Notes: 3.3l;W/Da6, W/3.3 Liter
6581515
Clutch
- Part Notes: 2.2l, 2.5l, 3.1l;W/Da6, W/O 3.3 Liter

89019185
Coil
- Part Notes: All Models;W/Da6

10184978
Compressor Bracket
Part Notes: 4 Cylinder
24500923
Compressor Bracket
- Part Notes: 6 Cylinder

52460704
Fan
$68.12 $38.15
1
Add To Cart

6580041
Pulley
Part Notes: 2.2 Liter;All Models; 2.2l
6580045
Pulley
- Part Notes: 5.6";All Models; 3.3l

19118886
Relay
- Part Notes: 4 Cylinder;6 Cylinder
$108.08 $60.52
1
Add To Cart

89019204
Shaft Seals
- Part Notes: All Models

89034235
SEAL,A/C EVAP TUBE(O RING)(10 PIECE PACKAGES)
$8.92 $5.00
View Details

89019177
NUT,A/C CLUTCH(PART OF 24)
- Fitting Vehicle Options: A(LN2)
$13.18 $7.38
View Details

52450323
SWITCH,A/C CYCLING(9.275)
- Fitting Vehicle Options: A(LG7)

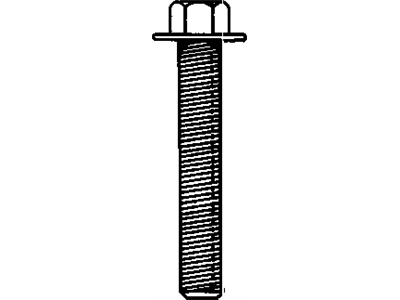

10067660
BOLT,HEX FLANGED HEAD,M8X1.25X45,22THD,17 O.D.,9.8
- Require Quantity: 06
- Package Quantity: 1
$6.69 $4.27
View Details

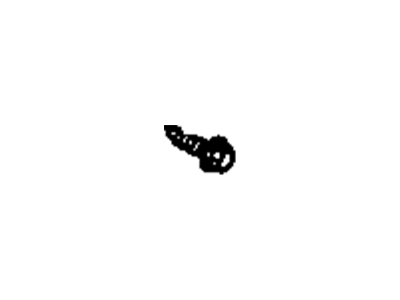

12337993
BOLT,HEX FLANGED HEAD,M10X1.5X30,26THD,21.5O.D.,10.9,(A/C COMPRESSOR & CONDENSER HOSE)
- Replaced By: 11516328
$5.08 $3.25
View Details

6557638
PLUG,A/C COMPRESSOR OIL DRAIN(M10 THREAD SIZE)(PART OF 24)(W/WASHER)
- Fitting Vehicle Options: A(LN2)
$19.41 $10.86
View Details
