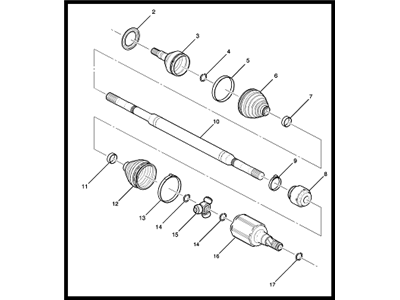

Diagram (1 of 1): Front Suspension - Drive Axles
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
13334704
Axle Assembly- Part Notes: W/O Diesel, Auto Trans, 1.4 Liter Turbo;W/O Diesel, Auto Trans, 1.8 Liter
- Location: Driver Side
$574.40 $365.061 - 1
- 1
- 113371620
Axle Assembly- Part Notes: W/O Diesel, Auto Trans, 1.8 Liter;W/O Diesel, Manual Trans
- Location: Passenger Side
- Replaced By: 13367770
$308.24 $171.841
- 2
$7.20 $4.591
- 3
- 4
- 5
13335242
Inner Joint- Part Notes: W/O Diesel, Auto Trans, 1.4 Liter Turbo;W/O Diesel, Auto Trans, 1.8 Liter
- Location: Driver Side
- 5
- 5
- 5$144.33 $92.151
- 6
- 7
- 8
$192.72 $122.491 - 8$188.03 $119.511
- 9
$10.29 $6.571
- 10
$6.39 $4.081
90105478
RING,FRONT WHEEL DRIVE SHAFT CV JOINT INNER RACE RETAINER(PART OF 1,12)(24.6 FREE OUTSIDE DIAMETER,1.6THK)(RETAINING)(25MM SPLINE DIAMETER)(SECURES MAIN SHAFT TO GEAR BOX)(6.061)- Fitting Vehicle Options: PJ,PL(69)
- Require Quantity: 02
- Package Quantity: 1
$1.41 $0.88

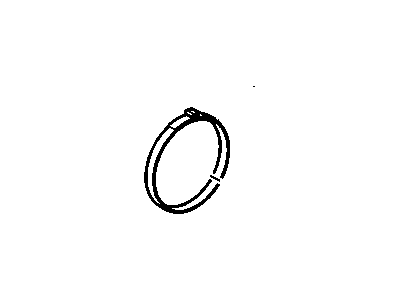

13317906
CLAMP,FRONT WHEEL DRIVE SHAFT CV JOINT INNER BOOT OUTER(PART OF 1,12,16)(94.5 INSIDE DIAMETER, WIDTH 8)(CRIMP CLAMP)- Location: Driver Side
- Fitting Vehicle Options: PJ,PL(69)
$7.37 $4.72
13317912
RING,FRONT WHEEL DRIVE SHAFT RETAINER(PART OF 1,3,6)(26MM MAX DIAMETER)(CUT OUT 13)- Fitting Vehicle Options: PJ,PL(69)(LUW,MH8,MZ0)
- Require Quantity: 02
- Package Quantity: 1
$7.21 $4.60
13317914
RING,FRONT WHEEL DRIVE SHAFT RETAINER(PART OF 1,12,16)(23MM MAX DIAMETER)(CUT OUT 8.9)- Fitting Vehicle Options: PJ,PL(69)(LUW,MH8,MZ0), PJ,PL(69)(LUJ,MH8,MF3)
- Require Quantity: 02
- Package Quantity: 1
$4.14 $2.64
11610941
BOLT,FRONT LOWER CONTROL ARM BUSHING(PART OF 26)(M10X1.5X32)(W/TORQUE TENSION FLUID)- Fitting Vehicle Options: PJ,PL(69)(GNA)
- Require Quantity: 02
- Package Quantity: 1
$7.18 $4.59
