2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Transmission Components (6 Spd-Transmission)
- 2.Transmission Components (8 Spd-Transmission)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
$37.83 $24.141 - 1
$61.65 $39.381
- 2
- 2
$40.21 $25.68
- 3
- 4
- 4
- 5
- 6

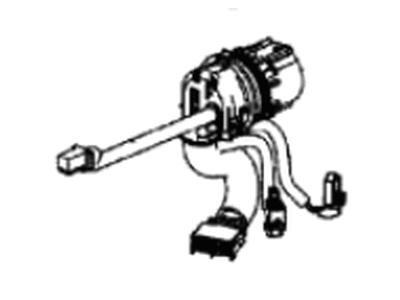

24298759
HARNESS,AUTOMATIC TRANSMISSION WIRING(2-PC,PASS THROUGH,ESS,10-PINION)(ORDER TOGETHER WITH 24298757 OR 24298758)- Fitting Vehicle Options: CK1(L8B,M5X)
$99.48 $63.52
- 24263431
PIN,AUTOMATIC TRANSMISSION FLUID PUMP(*KIT1)(4.265)- Fitting Vehicle Options: CK1(L83,M5U), CK1(L86,M5U), CK1(L8B,M5X)
- Require Quantity: 02
- Package Quantity: 1
$4.19 $2.68
- 24263437
PIN,AUTOMATIC TRANSMISSION CASE FRONT COVER LOCATING(PART OF 14)- Fitting Vehicle Options: CK1(L83,L86,M5U), CK1(L8B,M5X)
$3.93 $2.51

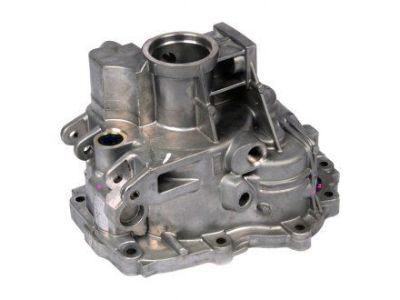

24281668
COVER,AUTOMATIC TRANSMISSION CASE FRONT- Fitting Vehicle Options: CK1(L83,M5U), CK1(L86,M5U), CK1(L8B,M5X)
$84.86 $54.20
24280003
DETENT,MANUAL SHIFT(W/8MM DIAMETER)(ROLLER)- Fitting Vehicle Options: CK1(L83,MYC), CK1(LV3,MYC), CK1(L86,MYC)
$7.42 $4.72
24258250
BEARING,OUTPUT CARRIER THRUST- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
- Replaced By: 24297471
$8.71 $5.54
24259216
SEAL,TORQUE CONVERTER FLUID(REAR SEAL)- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
$7.52 $4.80
- 24266366
SEAL,AUTOMATIC TRANSMISSION CASE FRONT COVER- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
$6.74 $4.30
- $7.39 $4.72
11547864
BOLT,STATOR SHAFT SUPPORT(4.226)- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
- Require Quantity: 02
- Package Quantity: 1
$0.29 $0.18
- $33.32 $21.28
24224350
SEAL,PARKING PAWL ACTUATOR GUIDE(O RING)(PART OF 509)- Fitting Vehicle Options: CK1(LV3,L83,L86,MYC)
- Require Quantity: 02
- Package Quantity: 1
$8.09 $5.16
24225422
PIPE,AUTOMATIC TRANSMISSION VENT(VENT PIPE WITH 45 DEGREE BEND)- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
$14.11 $8.98
19419378
CONVERTER,TORQUE(SEE TSB 21-NAME-199 FOR THERMAL BYPASS VALVE. INSTALL PER GM POLICIES & PROCEDURES. FAILURE TO FOLLOW TSB MAY RESULT IN REJECTED WARRANTY CLAIM)(REMANUFACTURED-NOT FOR SALE WHERE IMPORTS ARE RESTRICTED)- Fitting Vehicle Options: CK1(L83,MYC)(EXC NHT)
- Replaced By: 19435460
$536.39 $346.15
24259427
WASHER,DRIVE SPROCKET THRUST(REAR)- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
11612185
BOLT,VALVE BODY(M6X1X68)(TORX FLNGE)(*KIT1)- Fitting Vehicle Options: CK1(L83,M5U), CK1(L86,M5U), CK1(L8B,M5X)
- Require Quantity: 07
- Package Quantity: 1
$4.20 $2.68
11548201
BOLT,AUTOMATIC TRANSMISSION CASE FRONT COVER- Fitting Vehicle Options: CK1(L83,M5U), CK1(L86,M5U), CK1(L8B,M5X)
- Require Quantity: 11
- Package Quantity: 1
$0.33 $0.21

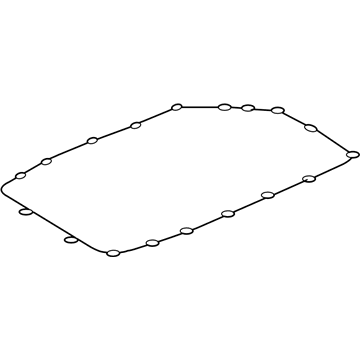

- 24286318
GASKET,AUTOMATIC TRANSMISSION FRONT SUPPORT COVER- Fitting Vehicle Options: CK1(L83,M5U), CK1(L86,M5U), CK1(L8B,M5X)
8654382
PLUG,LINE PRESSURE TEST HOLE(1/8-27)(NPFT HEXAGON HEAD)- Fitting Vehicle Options: CK1(L83,M5U), CK1(L86,M5U), CK1(L8B,M5X)
$7.20 $4.59
- 24256684
BOLT,MANUAL SHIFT DETENT SPRING(M6X1X25 21 THREAD)- Fitting Vehicle Options: CK1(L83,M5U), CK1(L86,M5U), CK1(L8B,M5X)
$4.98 $3.18
24266709
SEAL,TORQUE CONVERTER FLUID(SINGLE USE)(FRONT)- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
$15.93 $10.17
24205900
COVER,TORQUE CONVERTER HOUSING ACCESS HOLE(62MM W/3 TANGS)(LARGE COVER)- Fitting Vehicle Options: CK1(LV3,L83,L86,MYC)
$23.62 $15.06
24259119
WASHER,DRIVE SPROCKET THRUST(FRONT)- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
- 24289624

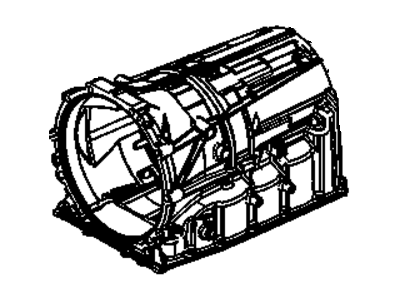

CASE,AUTOMATIC TRANSMISSION (MACHINING)(WHEN REPLACE CASE, PINS MUST BLACK ENAMEL REPLACE W/CASE: MANUAL SFT SHAFT PINION QTY (1), MANUAL SHIFT DETENT LEVER PINION QTY (1), & CONTROL VALVE BODY LOCATING PINION QTY (2)- Fitting Vehicle Options: CK1(L83,M5U), CK1(L8B,M5X)
$353.66 $224.81
- 24259218
SEAL,CLUTCH HOUSING FLUID PASSAGE(5 INSIDE DIAMETER NOTCHES, 23.1MM TALL)- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
$2.88 $1.84

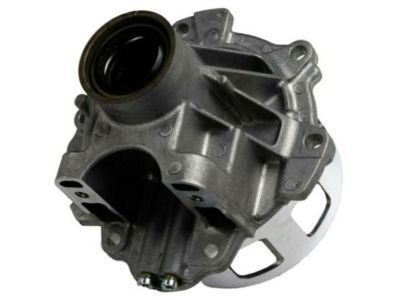

24288793

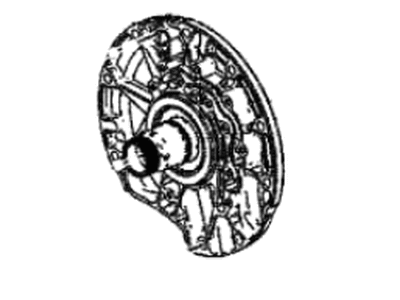

SUPPORT,STATOR SHAFT(NEW CALIBRATE REQ. REFER TO BUL 12-NAME-007: DELAYED ENGAGEMENT, FIRM GARAGESHIFTS, START UP CLUNK DTC P16F3 (REPROGRAM TCM)COVERS OTHER FIXES IN SERVICE.)(INCLUDES 13)- Fitting Vehicle Options: CK1(L86,M5U), CK1(L8B,M5X)
$260.57 $165.63

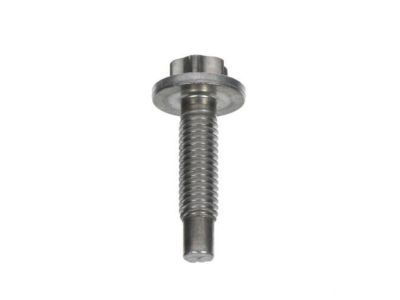

11612186
BOLT,VALVE BODY(M5X.8X55)(HEXAGON FLANGE)- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
- Require Quantity: 19
- Package Quantity: 1
$0.18 $0.11
24205899
PLUG,TORQUE CONVERTER HOUSING ACCESS HOLE(28MM W/3 TANGS)(SMALL COVER)- Fitting Vehicle Options: CK1(MYC)
$12.27 $7.83
24239878
SLEEVE,AUTOMATIC TRANSMISSION ELECTRIC CONNECT PASSAGE- Fitting Vehicle Options: CK1(LV3,L83,L86,MYC)
$13.27 $8.48
24224574
BOLT,TORQUE CONVERTER HOUSING- Fitting Vehicle Options: CK1(LV3,L83,L86,MYC)
- Require Quantity: 09
- Package Quantity: 1
$9.27 $5.91
24266593
RING,1-3-5-6-7 CLUTCH FLUID SEAL- Fitting Vehicle Options: CK1(L86,M5U), CK1(L83,M5U), CK1(L8B,M5X)
- Require Quantity: 02
- Package Quantity: 1
$10.89 $6.92
$15.27 $9.73
$17.83 $11.38
$7.43 $4.74
$37.05 $23.67
$7.77 $4.94
$13.49 $8.62

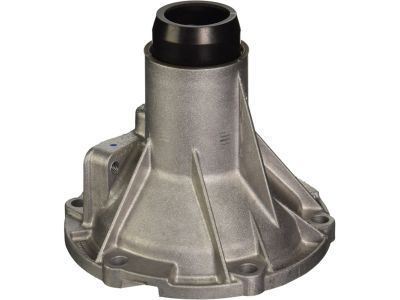

24224676
EXTENSION,AUTOMATIC TRANSMISSION CASE(INCLUDES 35,36)- Fitting Vehicle Options: C1(LV3,L83,MYC)
$178.84 $113.66
$364.66 $231.76

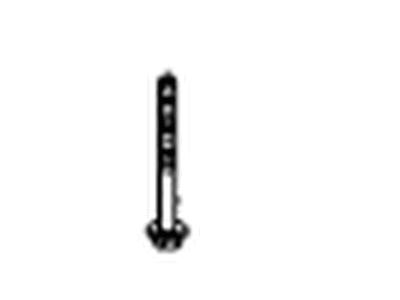

24237181
BOLT,VALVE BODY(M5X0.8X73.0)- Fitting Vehicle Options: CK1(LV3,L83,L86,MYC)
- Require Quantity: 06
- Package Quantity: 1
$7.21 $4.60
