Diagram (1 of 1): Air Condition System

1986 Cadillac Fleetwood Air Condition System Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

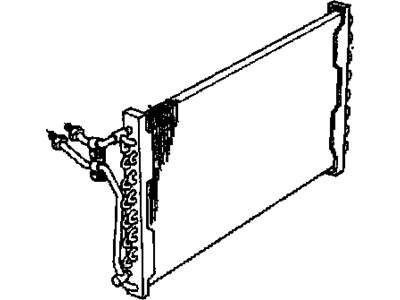

1
3094990
Condenser

2
89019212
Compressor
- Part Notes: Gas

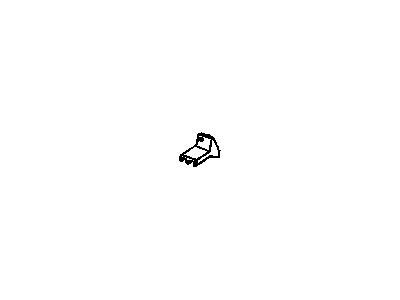

3
1639805
Compressor Mount Bracket
- Part Notes: Front, Gas

4
3544038
Compressor Mount Bracket
- Part Notes: Rear, Gas, W/O One Hole Mount

6

2724802
Dehydrator

8
1634220
A/C Hose
- Part Notes: Comp To Cond, Gas

9
25526072
A/C Hose
- Part Notes: Evap To Dehydrator

10
25535702
A/C Line
- Part Notes: Condenser Outlet, Gas

11
1627663
A/C Line
- Part Notes: Evaporator Inlet

12
3092972
Evaporator Core

14
3053201
Cover

16
3094156
Fan

6552184
Clutch
89019049
Clutch
- Part Notes: Gas
$259.66 $144.76
1
Add To Cart

3091128
Coil
Part Notes: 8 Cylinder;Gas
6551217
Coil

88964871
Compressor
$454.14 $253.18
1
Add To Cart

16060826
Computer

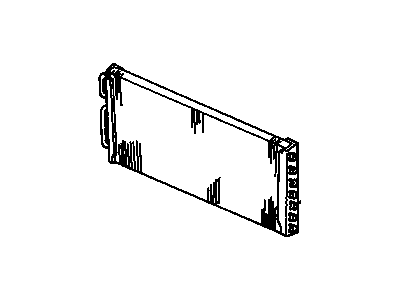

52485722
Condenser

14046389
Condenser Bracket
Location: Driver Side
14046390
Condenser Bracket
- Location: Passenger Side

14046387
Condenser Insulator

16047800
Control Module
- Replaced By: 12484912
$304.60 $169.81
1
Add To Cart

2724865
Dehydrator

3058130
Evaporator Core

52451060
Fan

3090869
Filter

6557399
O-Ring Kit
- Part Notes: All Models

6556715
Pulley
- Part Notes: 4.6" Diameter

6580037
Pulley W/Bearing
- Part Notes: Gas

5914435
Relief Valve
- Part Notes: All Models
- Replaced By: 02724982
$68.31 $38.26
1
Add To Cart

16047526
Sensor
Part Notes: Outside Temperture
16089366
Sensor
- Part Notes: Inside Air Temp
1626146
Sensor
- Part Notes: Refrigerant Temp

89019204
Shaft Seal Kit
- Part Notes: All Models

25553901
Splash Shield

20118754
SPRING, RETAINER REAR OF REAR WHEEL OPENING

89019176
SWITCH KIT, HIGH PRESSURE CUTOFF

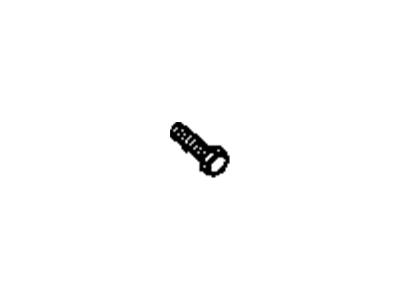

9439905
BOLT, HEX FLANGED HEAD (3/8-16X0.75) PHOSPHATE ZINC ORGANIC
$7.31 $4.66
View Details

52450547
SEAL,A/C REFRIGERANT ORIFICE TUBE(O RING)(A/C REFRIGERANT ORIFICE TUBE)
$1.47 $0.82
View Details

6557996
SCREW, PULLEY REAR INTEGRATION MODULE MOUNTING

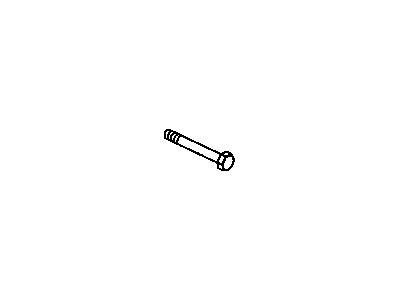

11508489
BOLT, HEX FLANGED HEAD (M10X1.5X130) 9.8, PHOSPHATE ZINC ORGANIC
$16.75 $10.70
View Details

9424069
BOLT, HEXAGON (7/16X14X1 1/4) 300M PHOSPHATE
$5.42 $3.46
View Details

3990160
WASHER,FLAT 15/32 X 7/8 X 3/32 HARD PC
$0.89 $0.56
View Details

11509419
BOLT, HEXAGON (M10X1.5X25) 10.9 PHOSPHATE ORGANIC

11509838
BOLT,HEXAGON,M10X1.5X110,26THD,15 O.D.,10.9,PC(AS REQUIRED)

6556572
BEARING, FRONT HEAD MAIN

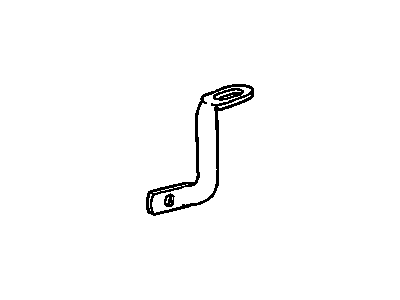

22535495
BRACE, SUPPORT

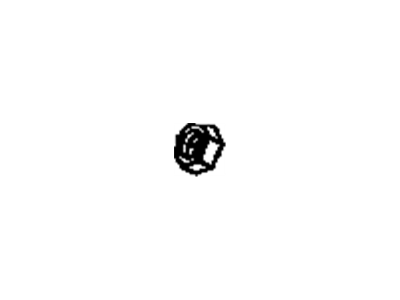

12338130
NUT, HEXAGON (5/16X18) PHOSPHATE ORGANIC (8.915)
$5.21 $3.33
View Details

2077521
WASHER,FLAT 7/32X1/2X5/8 1050 CADMIUM HARD(INSIDE AIR TEMPERATURE SENSOR ASPIRATOR)

9442938
NUT, HEXAGON DIRECT TORQUE (7/16X20)
$2.23 $1.42
View Details

3035209
VALVE,TEMPERATURE
- Fitting Vehicle Options: D(FOR MOD APPL & POA SEE MODULE CHT)

11516994
SCREW,HEX WASHER HEAD,SELF TAP,M6.3X1.81X25,13 O.D.,ALUMINUM BASECOAT POINT,6010M,PHOSPHATE ZINC ORGANIC(8.900)
$7.38 $4.72
View Details

3046558
SWITCH,THERMOSTAT CYCLING(*03)
- Fitting Vehicle Options: D(FOR MOD APPL & POA SEE MODULE CHT)

16011346
ASPIRATOR,INSIDE AIR TEMPERATURE SENSOR
- Fitting Vehicle Options: D
