Diagram (1 of 1): Air Condition System

1986 Cadillac Fleetwood Heater Core & Control Valve Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3094990
Condenser

2
89019212
Compressor
- Part Notes: Gas

3
1639805
Compressor Mount Bracket
- Part Notes: Front, Gas

4
3544038
Compressor Mount Bracket
- Part Notes: Rear, Gas, W/O One Hole Mount

6

2724802
Dehydrator

8
1634220
A/C Hose
- Part Notes: Comp To Cond, Gas

9
25526072
A/C Hose
- Part Notes: Evap To Dehydrator

10
25535702
A/C Line
- Part Notes: Condenser Outlet, Gas

11
1627663
A/C Line
- Part Notes: Evaporator Inlet

12
3092972
Evaporator Core

14
3053201
Cover

16
3094156
Fan

25526626
Control Valve
- Part Notes: 8 Cylinder

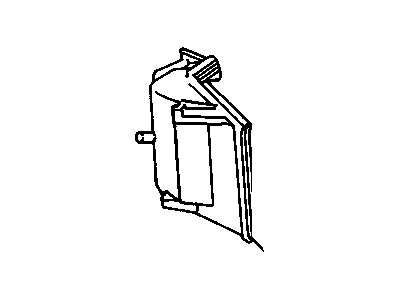

22784517
Heater Core
$200.46 $111.76
1
Add To Cart
19131979
Heater Core
19131991
Heater Core
- Part Notes: All Models; Climate Control

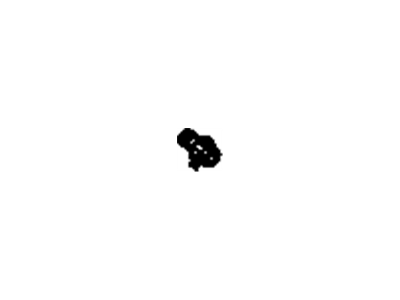

3990160
WASHER,FLAT 15/32 X 7/8 X 3/32 HARD PC
$0.89 $0.56
View Details

3035209
VALVE,TEMPERATURE
- Fitting Vehicle Options: D(FOR MOD APPL & POA SEE MODULE CHT)

11516994
SCREW,HEX WASHER HEAD,SELF TAP,M6.3X1.81X25,13 O.D.,ALUMINUM BASECOAT POINT,6010M,PHOSPHATE ZINC ORGANIC(8.900)
$7.38 $4.72
View Details

3046558
SWITCH,THERMOSTAT CYCLING(*03)
- Fitting Vehicle Options: D(FOR MOD APPL & POA SEE MODULE CHT)

52450547
SEAL,A/C REFRIGERANT ORIFICE TUBE(O RING)(A/C REFRIGERANT ORIFICE TUBE)
$1.47 $0.82
View Details
